Description

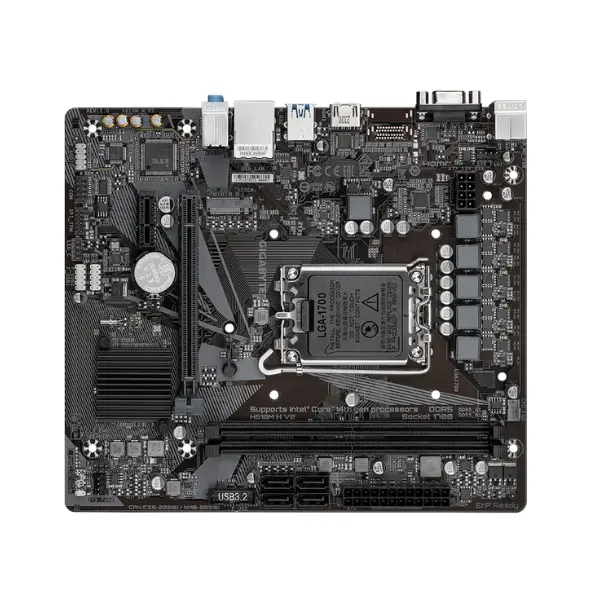

Gigabyte H610M H V2 LGA1700 Micro ATX Motherboard
Specifications
- Brand: Gigabyte
- CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Dimension: 22.3cm x 19.6cm
- Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- Expansion slot: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- Form factor: Micro ATX
- Form Factor: mATX
- M.2 Slots: 1
- Max Memory (GB): 128
- Memory: 2 x DDR5 DIMM sockets supporting up to 128 GB
- Memory Type: DDR5
- Model: H610M H V2
- Operating System: Windows 11, Windows 10
- SATA Ports: 4
- Socket: LGA1700
- Storage: Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors

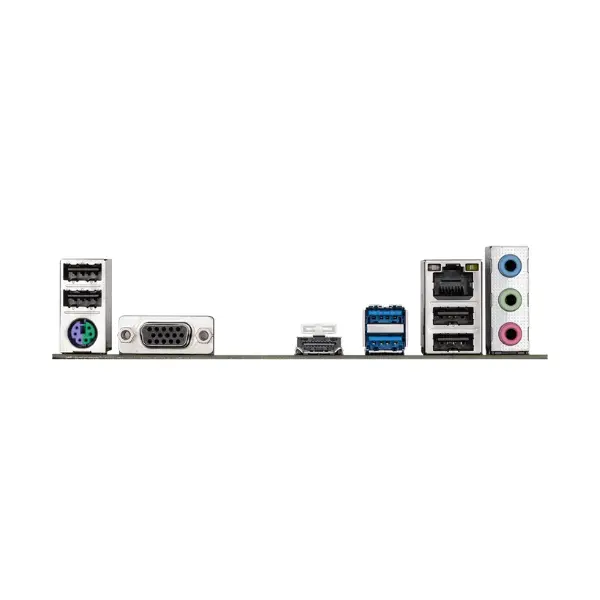

- USB: Chipset: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
- CPU SOCKET ( MOTHERBOARD ): LGA1700
- Motherboard Chipset: Intel® H610 Express Chipset
